Design configuration: The engineering challenge

In the life of an engineered product, there are many stages: from an initial idea through design, manufacture, use, maintenance and end of life processing. Product designs are typically assemblies of parts which themselves can be broken down into sub-assemblies and, ultimately, individual components.  These hierarchical structures are called “bills of materials” or BoMs. A product design may consist of several distinct but related bills of materials. For example, one bill of materials may be used to direct the assembly of a product whereas another may be used to direct its disassembly, e.g., to change a replaceable part. Each bill of materials describes a different design configuration.The research described in these pages is exploring how engineers move from one configuration to another and the kinds of computational tools that could support them in doing this. The examples included in this page show the kinds of BoM one might expect for a simple test case product.

Torch design case study

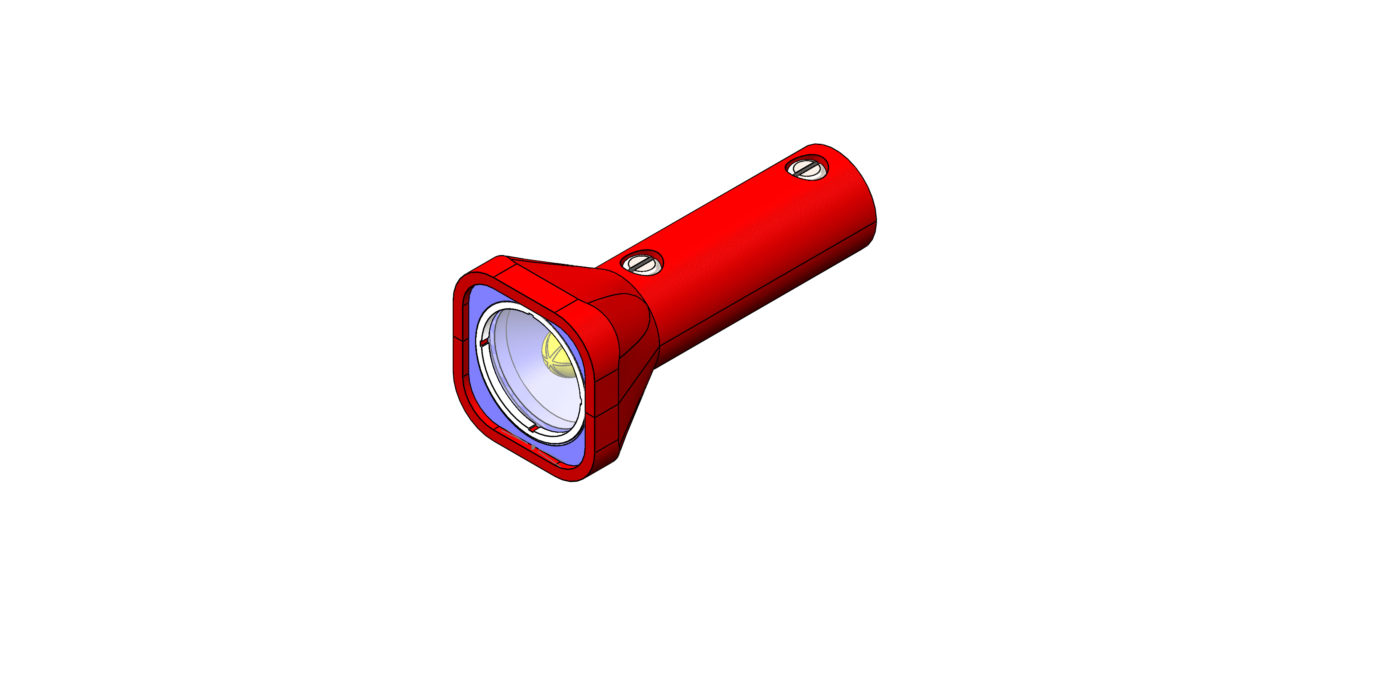

Solidworks model of a torch.

Design BoM

A given design has a BoM that identifies its parts and how they are related to each other: both physically and as aggregations of parts.

Service BoM

A given design typically has several service BoMs to support different service operations. For example, this BoM shows the parts that need to be removed when the bulb is changed.
